USB 2.0 & Video Extender

USB 2.0 & Video Extender

USB 2.0 & Video Extender

  • Extend video and USB 2.0 peripheral (including keyboard and mouse) up to 150 feet (50m) from the controlling computer
  • Supports USB 1.1 (low/ full speed) and USB 2.0 full speed devices at 480 Mbps
  • Advanced automatic video compensation and equalization with optional skew adjustments
  • Available in single, dual, or quad video models
  • Supports Video resolutions up to 1920 x 1200
  • Designed to support high powered USB devices

Features and benefits

  • Supports USB 1.1 (low and full speed) and USB 2.0 (high-speed)
  • Extend single, dual, or quad video and USB 2.0 peripherals up to 150 ft (50m) from a CPU using CATx cable (CAT5, 5e, 6, or 7)
  • Cable length compensation adjustments (Equalization and gain) are automatically performed
  • Video equalization and gain can be fine tuned with simple keyboard commands
  • Automatic video skew adjustments (optional)
  • Supports:
    • SVGA, VGA, XGA, RGB video modes
    • Single or Dual head VGA video cards
    • USB keyboards and mice
    • USB 2.0 high-speed peripherals
    • Video resolutions up to 1920 x 1200 @ 60Hz
  • Up to 500 ma of power is available at each USB port for powering high-power USB devices
  • Operating system independent

The Rose Advantage

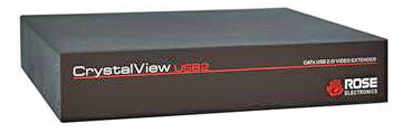

The CrystalView USB2 Video and USB extender is the extender of choice for extending single, dual, or quad video and USB devices up to 150 feet from the controlling computer. The CrystalView USB2 extender makes this possible by the use of standard CATx cable. You can view single, dual, or quad video and fully operate and control your USB devices from as far away as 150 feet using standard CATx cable.

Remotely accessing your USB devices is made convenient in a variety of situations. You can locate users away from hazardous industrial environments where the USB device is located, locate devices away from areas vulnerable to theft of hardware and data, reduce noise and heat; increase desk and floor space.

Transmit high quality single, dual, or quad video using CATx cable. Cable length is no problem. The CrystalView USB2 automatically adjusts the video compensation and gain based on the cable length. The auto skew model automatically adjusts the RGB video components to provide a crystal clear display regardless of cable type, patch panels or cable routing. Locate a video monitor(s) in remote control areas, classrooms, conference areas, video studios, and present the video from a computer 150 feet away.

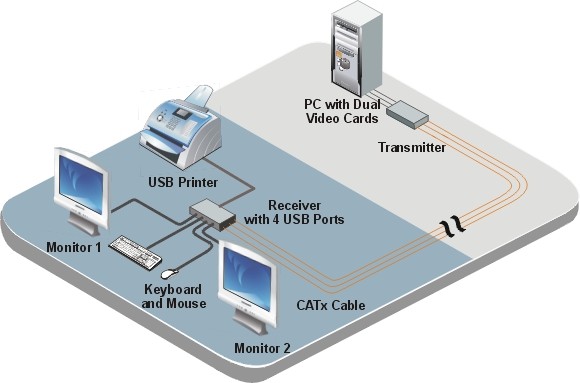

Typical application

Product Part / Description

  • CRK-1VH4U2TP-150 = Single VGA / USB 2.0
  • CRK-2VH4U2TP-150 = Dual VGA / USB 2.0
  • CRK-4VH4U2TP-150 = Quad VGA / USB 2.0
  • CRK-1VP4U2TP-150 = Single VGA / USB 2.0 / AUX PS/2
  • CRK-2VP4U2TP-150 = Dual VGA / USB 2.0 / AUX PS/2
  • CRK-4VP4U2TP-150 = Quad VGA / USB 2.0 / AUX PS/2
  • /W = Option: Automatic skew Adjustment
